Thursday, September 30, 2010

Scales

It is difficult to draw the components to their actual size, because they may be too large to be accommodated on the drawing sheet or too small to draw and cannot be effectively used in the shop floor. For example, think of making the drawing of motor car. It is too long and wide to be drawn on the drawing sheet to its original size. Similarly small component like a wheel of a wrist watch or its needle, if it is drawn to its original size will not be legible enough for use in the shop floor.
So depending upon the situation, drawings are drawn smaller or larger than the actual sizes. When we say that the drawings are smaller or larger, we mean that the given length in the drawing will be smaller or larger than the corresponding length in the object.
The ratio of the length in the drawing to its corresponding length of an object, when both the lengths are in the same unit, it is called the Representative fraction
R F =size of component in drawing /actual size of component c
Depending on the situation the term scale implies either RF or a measuring device itself made for a particular RF.
RF has two elements of which one of the elements is always ‘1’.
Example of RF: 1 : 5, 1 : 10, 150 : 1 etc.
First element in the RF always represents the size in the drawing while the second element represents the corresponding size of the object.

Wednesday, September 29, 2010

Archimedes spiral

Archimedes spiral:

It is a plane curve generated by a point which moves uniformly around and towards or away from a fixed point called the “ pole “ or it is a locus of a point which moves away or towards from another fixed point at a uniform linear velocity and uniform angular velocity







When the point on the spiral moves through 360 degree, it is called on “convolution”

Practical application Scroll plate of lathe chucks, spring of clocks, watches, tooth profile of helical gears and cams etc.

Helix

Helix :


When a point moves at a constant speed along a line which revolve at a constant rate around a fixed axis. The point traces a curve similar to the coil of a spring, such a curve is called helix.
The fixed distance through which the point moves parallel to the axis for each revolution of the line is called the “pitch “of the helix. (or lead).
The helix is called as cylindrical helix when the revolving line is parallel to the axis of the revolution.

If the revolving line is inclined to the axis of revolution the resulting helix is called conical helix.

The helix may be either right handed or left handed. The right handed helix climbs from the base towards right side as it rises along the axis.








Practical application Threads on bolts, screws, nuts, springs, spiral staircase etc. have helical curves in them.









Monday, September 27, 2010

Involutes

Involutes :

It is the curve traced out by a point on a cord as it unwinds (but remains taut) around a circle or polygon





Alternatively an involute may be defined as the curve traced out by a point on a straight line which rolls around a circle or polygon without slip. Depending upon plane shape around which the line rolls, the involutes are named as involute of a triangle, involute of a square, involute of a polygon, involute of a circle etc.

The most common application of involute is seen in the manufacture of gears. The profile of a gear tooth is the shape of involute.

Hypocycloid

Hypocycloid:

When the generating circle rolls on the inside (concave side) of a larger circle, the path of the point is hypocycloid.

Practical application:  The cycloidal curve has its application in the design of gears and used to form gear teeth outline

Epicycloid

Epicycloid :

When the generating circle rolls on the outside (convex side) of a larger circle, the path of the point is epicycloid.

Cycloid

Cycloid:
When the generating circle rolls on a straight line, the path of the point is a Cycloid.


Saturday, September 25, 2010

Privacy Policy

We take your privacy seriously. This policy describes what personal information we collect and how we use it. (This privacy policy is applicable to websites falling under the primary holder http://dhiraj-drawingoffice.blogspot.com/.)
Routine Information Collection
All web servers track basic information about their visitors. This information includes, but is not limited to, IP addresses, browser details, timestamps and referring pages. None of this information can personally identify specific visitors to this site. The information is tracked for routine administration and maintenance purposes, and lets me know what pages and information are useful and helpful to visitors.
Cookies and Web Beacons
Where necessary, this site uses cookies to store information about a visitor's preferences and history in order to better serve the visitor and/or present the visitor with customized content.
Advertising partners and other third parties may also use cookies, scripts and/or web beacons to track visitors to our site in order to display advertisements and other useful information. Such tracking is done directly by the third parties through their own servers and is subject to their own privacy policies.
Controlling Your Privacy
Note that you can change your browser settings to disable cookies if you have privacy concerns. Disabling cookies for all sites is not recommended as it may interfere with your use of some sites. The best option is to disable or enable cookies on a per-site basis. Consult your browser documentation for instructions on how to block cookies and other tracking mechanisms.
Special Note About Google Advertising
Any advertisements served by Google, Inc., and affiliated companies may be controlled using cookies. These cookies allow Google to display ads based on your visits to this site and other sites that use Google advertising services. Learn how to opt out of Google's cookie usage. As mentioned above, any tracking done by Google through cookies and other mechanisms is subject to Google's own privacy policies.
About Google advertising: What is the DoubleClick DART cookie? The DoubleClick DART cookie is used by Google in the ads served on publisher websites displaying AdSense for content ads. When users visit an AdSense publisher’s website and either view or click on an ad, a cookie may be dropped on that end user’s browser. The data gathered from these cookies will be used to help AdSense publishers better serve and manage the ads on their site(s) and across the web. Users may opt out of the use of the DART cookie by visiting the Google ad and content network privacy policy.
Contact Information
Concerns or questions about this privacy policy can be directed to
dmdhiraj@gmail.com for further clarification.

Cycloidal curves

Cycloidal curves :


Cycloidal curves are generated by a point fixed on the circumference of a rolling circle when it rolls without slipping on a straight line or on  the outside / inside of another circle.
The rolling circle is called the generating circle.

The fixed straight line on which the rolling circle rolls is called the directing line or base line and is equal to the circumference of the rolling circle. (πD)

The circle on which (either outside or inside) the rolling circle rolls is called directing circle or base circle.

Cycloidal curves are three type:
1.Cycloid
2.Epicycloid
3.Hypocycloid

Hyperbola

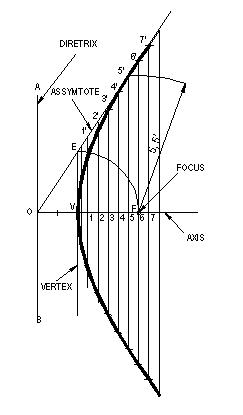

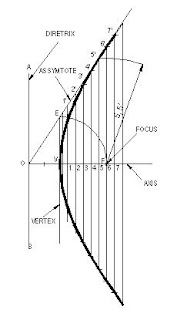

Hyperbola
It is a curve generated by a point ‘p’ moving in such a way that the distance from focus to the fixed straight line (directrix) is constant and is always greater than 1.





Practical application:  In design of water channels. Further it also represents Boyle’s law graphically and in design of electronics’ transmitter receiver and radar antenna

Parabola

Parabola
It is curve generated by a point ‘p’ moving in such a way that its distance from fixed point          (focus) and directrix remains constant and is always equal to 1

 Practical application:  Search lights, reflecting surfaces for light and sound, bridge arches, wall brackets and largely used in graphic methods for determining the stress upon the beams and girders etc.

Ellipse

Ellipse
It is a curve generated by a point moving in such a way that it distance from two fixed points (foci) is always constant and is always less than 1.




Practical application: In general, a circle in pictorial drawing is represented by an ellipse. The use of elliptical shape is rarely used for engineering applications. Ellipse is dealt extensively in mathematical books. Elliptical shape is adopted for better aesthetics.

Friday, September 24, 2010

Requirements for good lettering

Requirements for good lettering
1. Legibility
2. Knowledge of composition
3. Ease and rapidity
4. Uniformity in length, height inclination strength of lines and force applied for pleasing appearance.
5. Guide lines should be always faint.
6. Pencil technique should be always born in mind.
7. Shape and stroke by pencils makes your lettering good or bad.
8. Use always good quality pencils.
9. Cleanliness is necessary.
10. Do not sub letters frequently.
11. Hold your pencil at 600 to the surface of paper and rotate the pencil while writing.

LETTERING

To give all the information necessary for the complete construction of machine structure there must be graphic language of lines. Describing its size and dimensions notes or material and descriptive titles. All these must be lettered. There is no part important than lettering.
B.I.S. has recommended letters must be easy to write and easy to read. The main requirements for lettering on the engineering drawing are legibility, uniformity, easy and rapidly in exclusion.
In the art of lettering, there are various forms of alphabets used. The parents of all these are ‘old roman numbers’.
A variation known as modern roman which is used by civil engineering in finished maps and in tropographic drawing for working drawings. Simplified form called as ‘gothic’s letters are used.
There are two types of gothic letters-
1. Single stroke gothic letters (vertical or inclined)
2. Double stroke gothic letters (vertical or inclined)
Gothic means thickness.
I will tell u "Requirements for good lettering" in next post

Tuesday, September 21, 2010

Blog started

Today is ANANT CHATURTHI and I am starting my another new blog that is only for MACHANICAL field.
